Deploy a Webhook connector

The Webhook channel allows you to interact with your assistant from any service, via HTTP requests.

Configuration​

On this part, you can configure the settings of your webhook such as :

  • Name of your channel : for internal use only
  • Activation of your channel : enable this settings to make your channel active
  • Active languages which can be select by your end-users

This configuration will also display the endpoint and secret that you need to connect to your webhook.

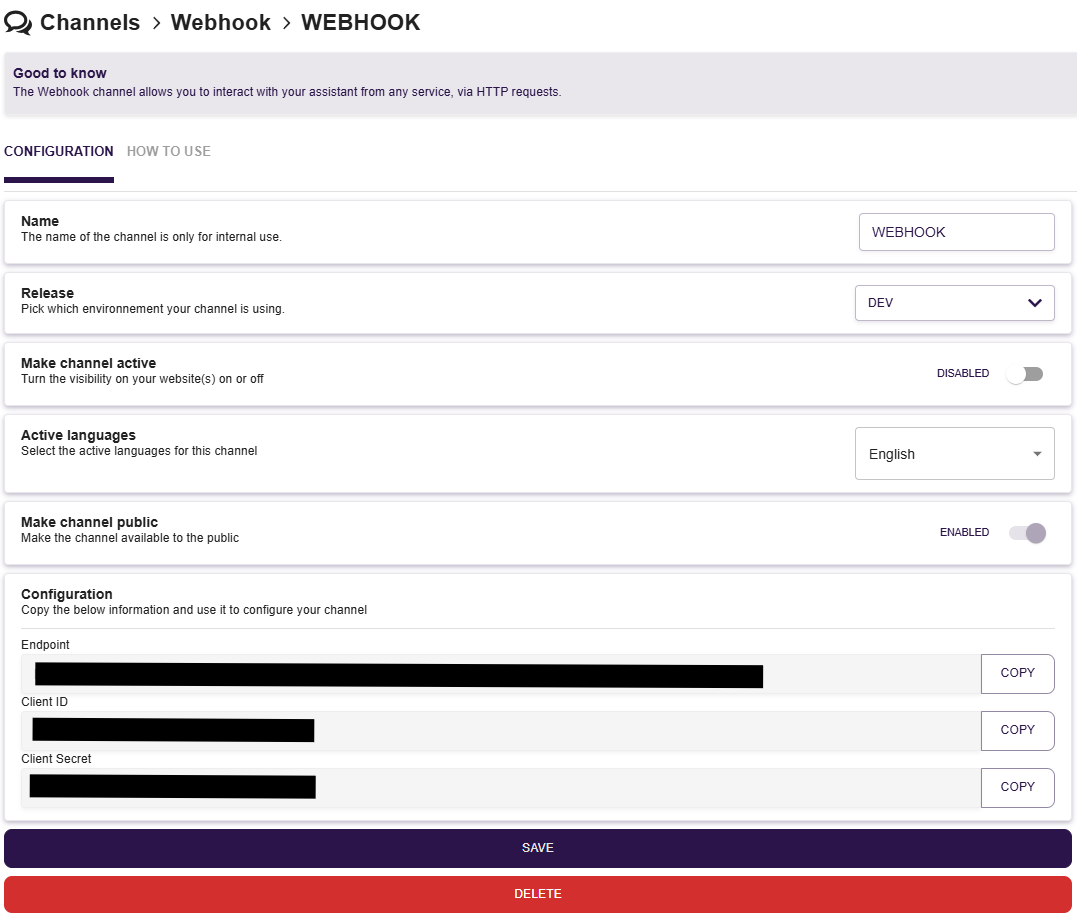

Webhook configuration page

API Documentation​

1. Start a new conversation : POST /startConversation​

Description:​

This endpoint starts a new conversation with the webhook channel of nAIxus. It requires a JSON payload in the body of the request.

URL:​

<BASE_URL>/channels/webhook/<CLIENT_ID>/startConversation

info

For SaaS client, BASE_URL = https://conversation.naixus.ssai.ovh

CLIENT_ID can be found in the webhook configuration page

Method:​

POST

Headers:​

  • Content-Type: application/json

Request Body:​

The body must be a JSON object containing the language and integration context. Below is an example of the request body:

{
  "language": "en_US",
  "integrationContext": {}
}

Example Request:​

curl -X POST https://conversation.naixus.ssai.ovh/channels/webhook/<CLIENT_ID>/startConversation \
     -H "Content-Type: application/json" \
     -d '{
           "language": "en_US",
           "integrationContext": {}
         }'

Response:​

{
  "conversation": {
    "conversation": {
      "id": "conversation_id",
      "eventStack": [
        {
          "type": "START",
          "data": {},
          "timestamp": "start_timestamp"
        },
        {
          "type": "BOT_MESSAGE",
          "data": {
            "content": "bot_message_content",
            "rawContent": "raw_bot_message_content",
            "suggestions": ["suggestion1", "suggestion2", "suggestion3"],
            "expectedResponseType": "expected_response_type",
            "sources": []
          },
          "timestamp": "message_timestamp"
        }
      ],
      "context": {
        "variables": {},
        "uploadedFiles": {},
        "channel": {
          "id": "channel_id",
          "version": "channel_version",
          "release": "channel_release",
          "languages": ["language1", "language2", "language3"],
          "channelType": "channel_type"
        },
        "language": "language_code",
        "shouldClassifyNextMessage": true,
        "digressionTypeNextMessage": "digression_type",
        "graphReaderConversationalStack": [
          {
            "status": {
              "executorType": "executor_type",
              "statusType": "status_type",
              "flagName": "flag_name"
            },
            "context": {}
          },
          {
            "status": {
              "executorType": "executor_type",
              "statusType": "status_type",
              "nodeId": "node_id"
            },
            "context": {
              "scenarioName": "scenario_name"
            }
          }
        ],
        "nextMessageExpectedType": "expected_message_type",
        "entities": []
      },
      "status": "conversation_status",
      "labelIds": [],
      "createdAt": "creation_timestamp",
      "updatedAt": "update_timestamp"
    },
    "newMessages": {
      "newEvents": [
        {
          "type": "BOT_MESSAGE",
          "data": {
            "content": "new_bot_message_content",
            "rawContent": "new_raw_bot_message_content",
            "suggestions": ["new_suggestion1", "new_suggestion2", "new_suggestion3"],
            "expectedResponseType": "new_expected_response_type",
            "sources": []
          },
          "timestamp": "new_message_timestamp"
        }
      ]
    }
  }
}

Explanation of Fields:​

  • conversation_id: Unique identifier of the conversation.
  • start_timestamp: Timestamp of the start of the conversation.
  • bot_message_content: Content of the bot message in HTML format.
  • raw_bot_message_content: Raw content of the bot message.
  • suggestion1, suggestion2, suggestion3: Suggestions provided by the bot.
  • expected_response_type: Expected type of response (e.g., textOrSuggestion).
  • message_timestamp: Timestamp of the bot message.
  • channel_id: Identifier of the channel.
  • channel_version: Version of the channel.
  • channel_release: Release version of the channel.
  • language1, language2, language3: Languages supported by the channel.
  • channel_type: Type of the channel.
  • language_code: Language code used in the conversation.
  • digression_type: Type of digression for the next message.
  • executor_type: Type of executor of the status.
  • status_type: Type of status.
  • flag_name: Name of the scenario flag.
  • node_id: Identifier of the node in the scenario.
  • scenario_name: Name of the scenario.
  • expected_message_type: Type of the next expected message.
  • conversation_status: Status of the conversation.
  • creation_timestamp: Timestamp of the conversation creation.
  • update_timestamp: Timestamp of the conversation update.
  • new_bot_message_content: Content of the new bot message.
  • new_raw_bot_message_content: Raw content of the new bot message.
  • new_suggestion1, new_suggestion2, new_suggestion3: New suggestions provided by the bot.
  • new_expected_response_type: New expected type of response.
  • new_message_timestamp: Timestamp of the new bot message.
info

Save the conversation_id to continue the conversation

2. Send a new message to an existing conversation : POST /newMessage​

Description:​

This endpoint continues the conversation by sending a new message. It requires the conversation ID obtained from /startConversation and the user's input.

URL:​

<BASE_URL>/channels/webhook/<CLIENT_ID>/newMessage

info

For SaaS client, BASE_URL = https://conversation.naixus.ssai.ovh

CLIENT_ID can be found in the webhook configuration page

Method:​

POST

Headers:​

  • Content-Type: application/json

Request Body:​

The body must be a JSON object containing the conversation ID and the user's input. Below is an example of the request body:

{
  "conversationId": "conversation_id",
  "userInput": "userInput"
}

Example Request:​

curl -X POST https://conversation.naixus.ssai.ovh/channels/webhook/<CLIENT_ID>/newMessage \
     -H "Content-Type: application/json" \
     -d '{
           "conversationId": "bd5ef5dd-80ba-4af7-9246-17f6cd8029fe",
           "userInput": "I want to raise an incident"
         }'

Response:​

{
  "conversation": {
    "newEvents": [
      {
        "type": "BOT_MESSAGE",
        "data": {
          "content": "bot_message_content",
          "rawContent": "raw_bot_message_content",
          "suggestions": ["suggestion1", "suggestion2", "suggestion3"],
          "expectedResponseType": "expected_response_type",
          "sources": []
        },
        "timestamp": "event_timestamp"
      }
    ]
  }
}

Explanation of Fields:​

  • bot_message_content: Content of the bot message in HTML format.
  • raw_bot_message_content: Raw content of the bot message.
  • suggestion1, suggestion2, suggestion3: Suggestions provided by the bot.
  • expected_response_type: Expected type of response (e.g., suggestion).
  • event_timestamp: Timestamp of the event.

Notes​

  • Both endpoints do not require any form of authorization.
  • Make sure to replace CLIENT_ID and BASE_URL with the actual configuration of your webhook endpoints.
  • Ensure that the conversation ID from the response of Endpoint 1 is used correctly in the request body of Endpoint 2 to continue the conversation.

This documentation should help you understand how to interact with the webhook API endpoints effectively.
